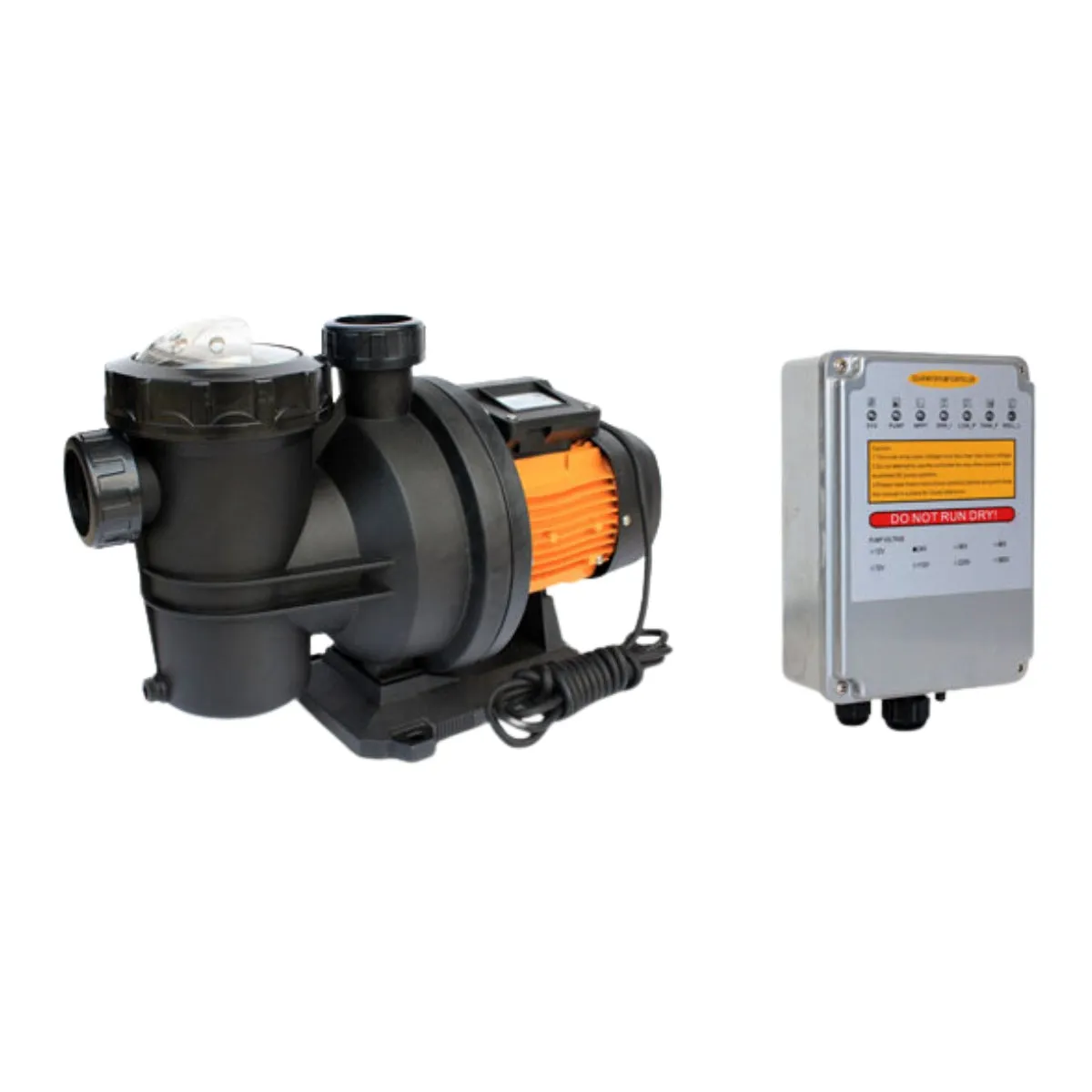

Name: Bundu Power 900W 72V Solar Pool Pump
SKU: 452165

FEATURES

100% OFF GRID Solution
NO Batteries or AC Required
NO Timers required
Variable Speed DC Motor
MPPT Controller
Pool water to be turned twice in 24 Hours
21.0m³ x 5.5Hrs p/day = (115.5m³/2) = 57,750 Ltrs
50mm Inlet / 50mm Outlet

Model	JP21-19-900
Litres Per Minute	L
Max. flow rate (m³/h)	21.0
Max. flow rate (Litres/h)	21,000
Max. Pool Size	57,750 Litres
Max. Head (m)	19
Ambient Temp	-30 to 45
Input voltage	72v DC
Type of enclosure	IP54
Max. power input (W)	900
Class of insulation	F
Suction Inlet Lift	3.0 m
Max. casing pressure	2.5 bar
Max. water temp	60 °C
Controller Input	48V - 100V (VoC)
Impeller	Plastic

SOLAR PANEL RECOMMENDATIONS

PANELS	VOLTAGE (VMP)	QTY
340 Watts	38.14V	4
400 Watts	41V

PACKED DIMENSIONS

Length	520 mm
Width	220 mm
Height	350 mm
Weight	20 kgs

What is included:

1 x Bundu Power 2 Way Pump Box

PLEASE NOTE: Submersible Cabler (6mm 3 Core) sold separately.

KEY ASSUMPTIONS

Your pool water should be turned twice in a 24 hour period
This pump will drive most pool cleaners
Max pool size: (Flow Rate * 6Hrs per day) / 2 = Pool Size
Higher head = less suction for pool cleaner
Pump will start from sun-up to sun-down daily

How to determine Pool size

Width (m) x Length (m) x Average Depth (m) x 1000 = Litres
I.e.: 5m x 3m x 1.2m = 19.2m x 1000 = 19 200 Litres
Pump size determined by rotating water twice in a 24 Hour period. Calculated on
6 hours at maximum pumping capacity per day.
This pump is a replacement for your existing pool pump and it will work with your pool cleaner. It does not heat water.

PLEASE NOTE: Exceeding the recommended Input Voltage () to the controller can damage the controller and void your warranty. Please ensure the correct panel configuration before connecting the pump controller.
